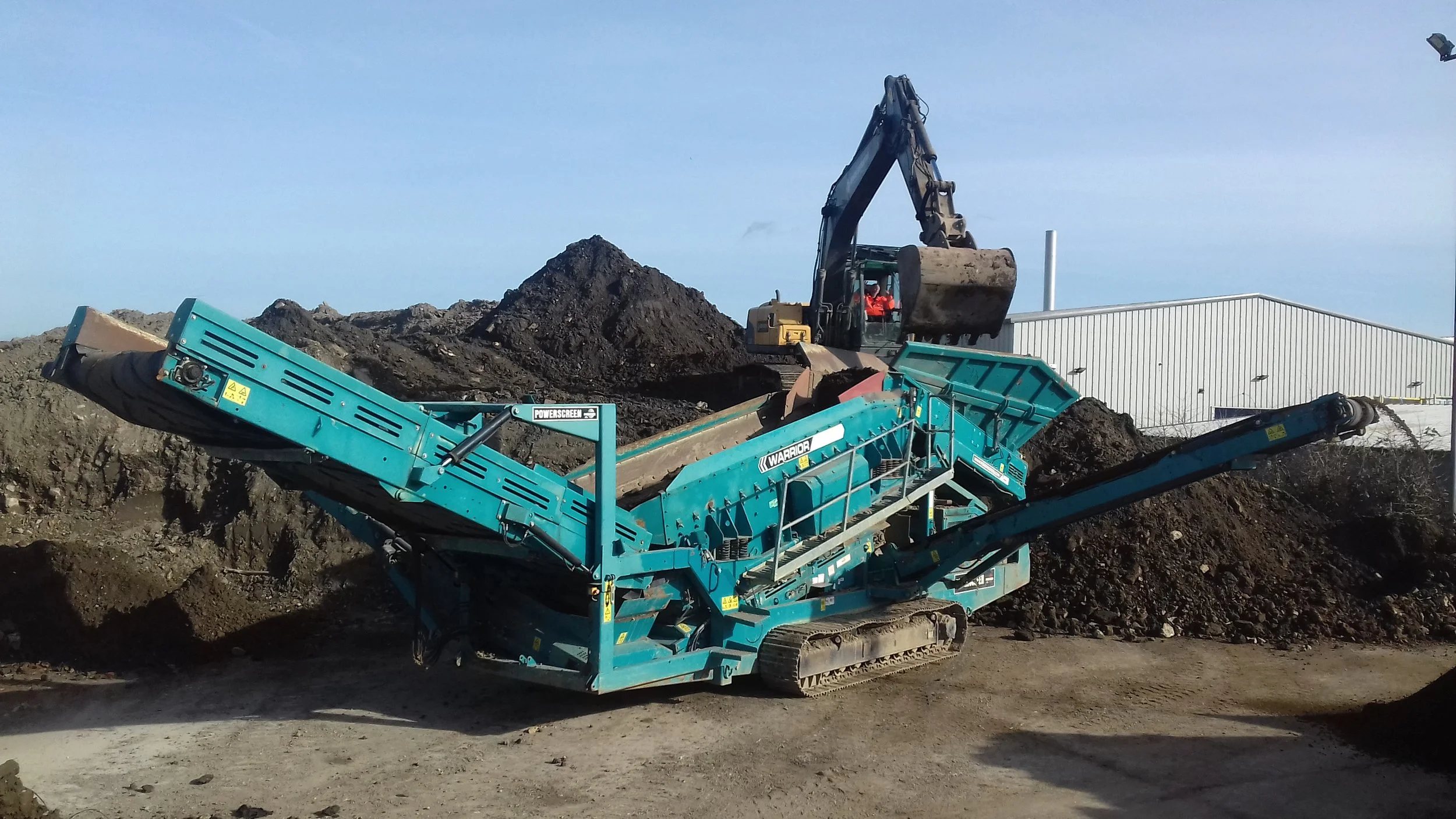

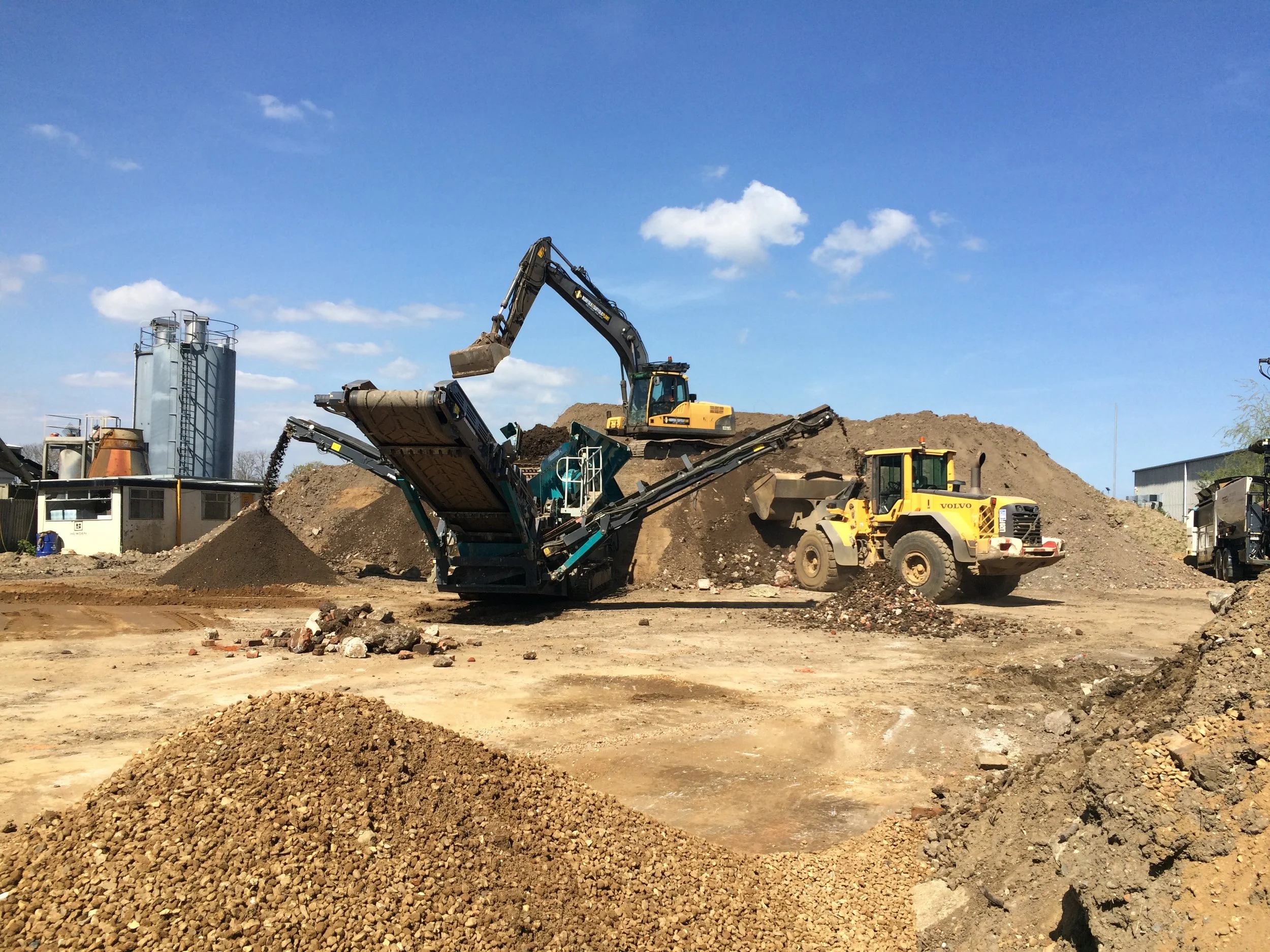

POWERSCREEN WARRIOR 600X

The Powerscreen® Warrior 600 has been specifically designed for operators for whom versatility, manoeuvrability and transportability are of key importance. The compact transport envelope allows the unit to be transported in a shipping container, and is small and light enough to move between sites with minimal cost.

POWERSCREEN 600.PNG

Or give us a call - 01502 377021



    The machine is a multipurpose heavy duty incline 2 deck screen, capable of stockpiling, scalping before and after crushing units, or as a standalone unit. Its highly aggressive screen can accept bofor bars, finger screens, woven mesh and punch plates along with other application specific media types.User benefits include a rapid set-up time and ease of operation aided by hydraulic folding side conveyors, rigid feed hopper sides and two speed tracks.

    SPECIFICATIONS



    Total weight (Est) 12,000kgs (26,455 lbs)Transport width 2.25m (7'5")

    Transport length 10.98m (36')

    Transport height 2.55m (8'4")

    Working length 10.54m (34'7")

    Working width 10.42m (34'2")

    Working height 3.18m (10'5")

    Screen unit 2.34m x 1.17m (8' x 4')

    MAIN FEATURES

    Smart design minimises weight but retains strength and robustness

    Rapid conversion from 3 way split to 2 way split - fully hydraulic

    High aggression screenbox with ability to adjust stroke

    Robust, heavy duty, fixed angle 2 bearing, 2 deck screen

    Open chassis design with unrivalled access below screen to aid mesh changes

    Variable speed hopper featuring heavy duty rollers & rigid hopper

    Hydraulic folding conveyors with excellent stockpiling capacity

    Quick and simple 3 stage set-up

    Ultra-low fuel consumption with optimised hydraulics

    37kW engine option complies with the latest EU emissions legislation, without the requirement for engine exhaust after-treatment system or urea additions
