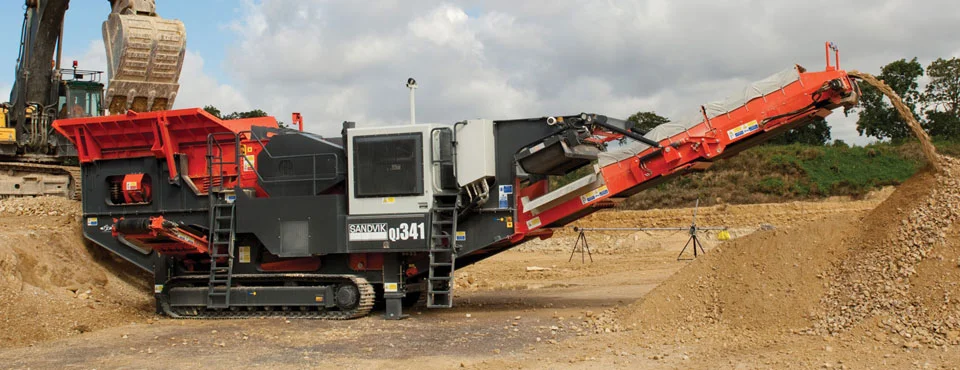

The QJ341 Mobile jaw crusher features a massive 1200 x 750mm (47 x 29") jaw opening designed to tackle the most difficult applications.

Features

  • Hydraulically adjustable jaw setting to maximise your output
  • Reverse crushing action to crush sticky material or relieve blockages
  • Hydraulic drive enabling the crusher to start under load, minimising downtime
  • Jaw level sensor available to control feed rate with minimal intervention
  • Raise/lower facility on the main conveyor, ideal for your recycling operations

Key Specifications

  • Equipment Single toggle C12 jaw crusher
  • Feed Opening 1200 x 750 mm / 47" x 29"
  • Optimum Feed Size 650 mm / 25" 6'
  • Engine C9 / C9.3 Acert 261 kW / 350 hp
  • D11 Volvo 265 kW / 355 hp
  • Transport Length 14.15 m / 46' 5 ⅛"
  • Transport Width 2.86 m / 9' 4 ½"
  • Transport Height 3.44 m / 11' 3 ¼" Weight 48,194 kg / 106,250 lbs
